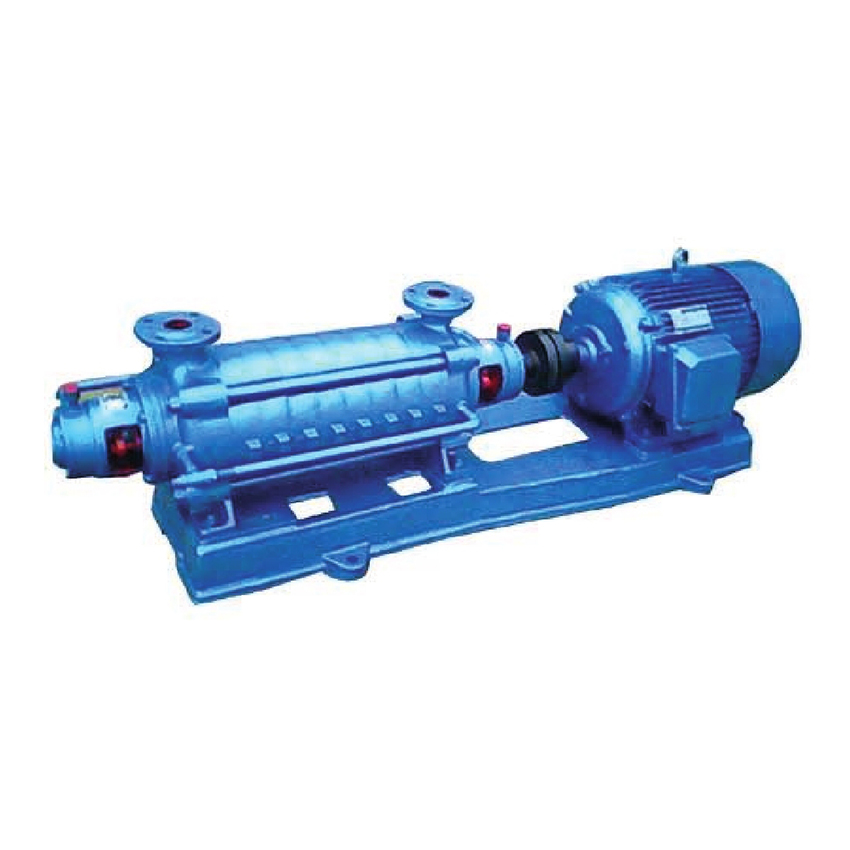

GC型鍋爐給水泵
- 電 話：0550-7703658
- 傳 真：0550-7703668
- 郵 箱：lybfyxgs@163.com
產品描述
GC型泵供輸送不含固體顆粒的清水或物理、化學性質類似清水，適合于小型鍋爐的給水、工廠、礦山及城市的給排水之用。
| 型號 | 級數 | 口徑 caliber | 流量(m3/h) | 揚程 | 吸程 (m) | 效率(%) | 轉率 (r/min) | 電機功率(KW) | 電機功率(KW) |
type | stage | 吸出 inhalation | 吐出 exhalation | rateofflow | head | stroke | eff | rotatespeed | motorpower |
| 11/2GC-5x | 2 | 40 | 40 | 6 | 46 | 6.5 | 38 | 2960 | 3 |
3 | 40 | 40 | 6 | 69 | 6.5 | 38 | 2960 | 4 | |
4 | 40 | 40 | 6 | 92 | 6.5 | 38 | 2960 | 5.5 | |
5 | 40 | 40 | 6 | 115 | 6.5 | 38 | 2960 | 7.5 | |
6 | 40 | 40 | 6 | 138 | 6.5 | 38 | 2960 | 7.5 | |
7 | 40 | 40 | 6 | 161 | 6.5 | 38 | 2960 | 7.5 | |
8 | 40 | 40 | 6 | 184 | 6.5 | 38 | 2960 | 11 | |
9 | 40 | 40 | 6 | 207 | 6.5 | 38 | 2960 | 11 | |
2GC-5x | 2 | 50 | 50 | 10 | 64 | 5.5 | 39.6 | 2960 | 5.5 |
3 | 50 | 50 | 10 | 98 | 5.5 | 39.6 | 2960 | 7.5 | |
4 | 50 | 50 | 10 | 128 | 5.5 | 39.6 | 2960 | 11 | |
5 | 50 | 50 | 10 | 160 | 5.5 | 39.6 | 2960 | 15 | |
6 | 50 | 50 | 10 | 192 | 5.5 | 39.6 | 2960 | 18.5 | |
7 | 50 | 50 | 10 | 224 | 5.5 | 39.6 | 2960 | 22 | |
8 | 50 | 50 | 10 | 256 | 5.5 | 39.6 | 2960 | 22 | |
9 | 50 | 50 | 10 | 288 | 5.5 | 39.6 | 2960 | 30 | |
221GC-6x | 2 | 65 | 65 | 15,20 | 62,54 | 4.5 | 47.4 | 2960 | 7.5 |
3 | 65 | 65 | 15,20 | 93,81 | 4.5 | 47.4 | 2960 | 11 | |
4 | 65 | 65 | 15,20 | 124,108 | 4.5 | 47.4 | 2960 | 15 | |
5 | 65 | 65 | 15,20 | 155,135 | 4.5 | 47.4 | 2960 | 18.5 | |
6 | 65 | 65 | 15,20 | 186,162 | 4.5 | 47.4 | 2960 | 22 | |
7 | 65 | 65 | 15,20 | 217,189 | 4.5 | 47.4 | 2960 | 30 | |
8 | 65 | 65 | 15,20 | 248,216 | 4.5 | 47.4 | 2960 | 30 | |
9 | 65 | 65 | 15,20 | 279,243 | 4.5 | 47.4 | 2960 | 37 |
